Add metadata to a report

To add metadata to an ECM Queue Entry, we have the function “SaveReportOption” in der ECMApi.

You can find an example save of the “Standard Statement” of the customer here, which will be triggered on the actual report run.

The parameters “StartDate” and “EndDate” will be put in the ECM Queue:

reportextension 50000 "ECM Standard Statement" extends "Standard Statement"
{
    trigger OnPostReport()
    begin
        StoreDocument2ECMQueue(Customer);
    end;

    local procedure StoreDocument2ECMQueue(var Customer: Record Customer)
    var
        ECMDocDef: Record "ECM Document Definition";
        TempECMJnlLine: Record "ECM Document Journal Line" temporary;
        TempMetadataFieldValue: Record "ECM Metadata Field Value" temporary;
        ECMapi: Codeunit "ECM API";
        ECMGlobals: Codeunit "ECM Globals Variables";
        StandardStatement: Report "Standard Statement";
        CustomerRecordRef: RecordRef;
        NVOutStream: OutStream;
        TransactionNo: BigInteger;
        ErrorCode: Integer;
    begin
        if ECMGlobals.GetPDFGenerator() <> '' then
            exit;

        // https://docs.easy-cloud.de/365BC-cloud/de-DE/340852859.html
        // Search document definition
        if not ECMapi.FindDocDefByRRef(ECMDocDef, Customer, ECMDocDef."Purpose of use"::"Assign & File") then begin
            // optional Fehlerhandling
            ECMapi.WriteLog('procedure StandardStatement.StoreDocument2ECMQueue', '', 71, enum::"ECM Message Type"::Information, Customer, 0, TransactionNo);
            exit;
        end;

        CustomerRecordRef.GetTable(Customer);
        CustomerRecordRef.SetRecFilter();

        // Add file to Blob in temporary "ECM Document Journal Line"
        TempECMJnlLine.Reset();
        TempECMJnlLine.DeleteAll();
        Clear(TempECMJnlLine);

        TempECMJnlLine."Line No." := 10000;
        TempECMJnlLine.File.CreateOutStream(NVOutStream);
        TempECMJnlLine."File Name" := 'Kontoauszug.pdf';

        ECMDocDef."File Name Suggestion" := TempECMJnlLine."File Name";

        // Skip reprint
        ECMGlobals.SetPDFGenerator('StandardStatement');
        StandardStatement.InitializeRequest(CurrReport.PrintEntriesDue, CurrReport.PrintAllHavingEntry, CurrReport.PrintAllHavingBal, CurrReport.PrintReversedEntries, CurrReport.PrintUnappliedEntries, CurrReport.IncludeAgingBand, '', 0, false, CurrReport.StartDate, CurrReport.EndDate);
        StandardStatement.SaveAs('', ReportFormat::Pdf, NVOutStream, CustomerRecordRef);
        // Restore Original State
        ECMGlobals.SetPDFGenerator('');

        // Generate MD5 Hash
        TempECMJnlLine.GenerateMD5Hash();
        // optional Errorhandling
        if TempECMJnlLine.md5 = '' then
            ECMApi.WriteLog('procedure StandardStatement.StoreDocument2ECMQueue', '', 75, Enum::"ECM Message Type"::Warning, Customer, 0, 0);

        TempECMJnlLine.Insert();

        // https://docs.easy-cloud.de/365BC-cloud/de-DE/340623448.html
        // Create an entry in the ECM Queue with file. (File as BLOB in TempECMJnlLine)
        ErrorCode := ECMapi.SaveFileRequest(TempECMJnlLine, TempMetadataFieldValue, ECMDocDef, Customer, TransactionNo);
        if ErrorCode <> 0 then begin
            // optional Errorhandling
            ECMApi.WriteLog('procedure StandardStatement.StoreDocument2ECMQueue', '', ErrorCode, Enum::"ECM Message Type"::Error, Customer, 0, TransactionNo);
            exit;
        end;

        if TransactionNo = 0 then
            exit;

        // Add additional metadata to Queue
        // https://docs.easy-cloud.de/365BC-cloud/de-DE/340590826.html
        ECMapi.SaveReportOption(TransactionNo, 'StartDate', Format(CurrReport.StartDate, 0, 9)); // name 'StartDate' needed for ECM Document Definition Source Field ID
        ECMapi.SaveReportOption(TransactionNo, 'EndDate', Format(CurrReport.EndDate, 0, 9));

        // https://docs.easy-cloud.de/365BC-cloud/de-DE/340754517.html
        // Release Queue for further processing
        ECMapi.ReleaseECMRepositoryRequest(TransactionNo);
    end;
}

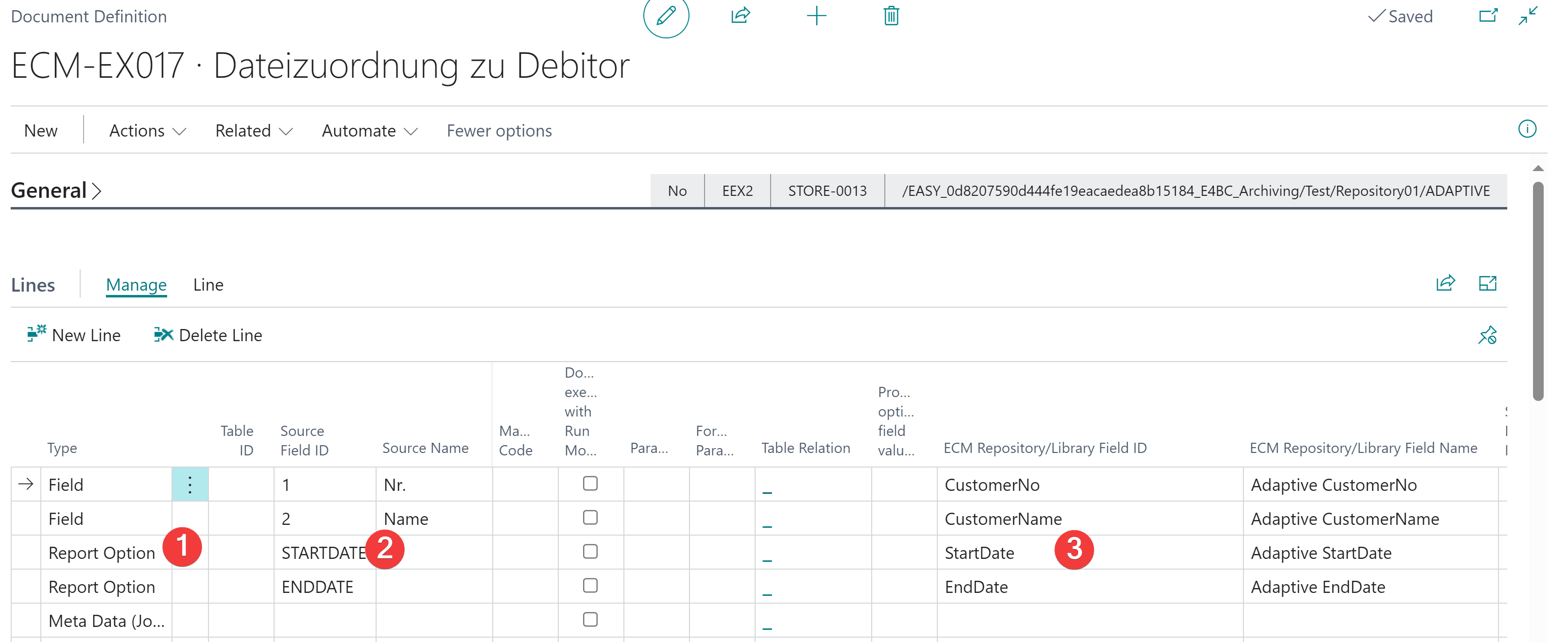

Additionally the “ECM Document Definition” needs to be modified, to be able to save the metadata in the archive:

ECM Document Definition

Following settings have to be made:

Type = Report Option
Source Field ID = Parameter OptionName from call ofECMApi.SaveReportOption
ECM Repository/Library Field Id = Archive Field Name

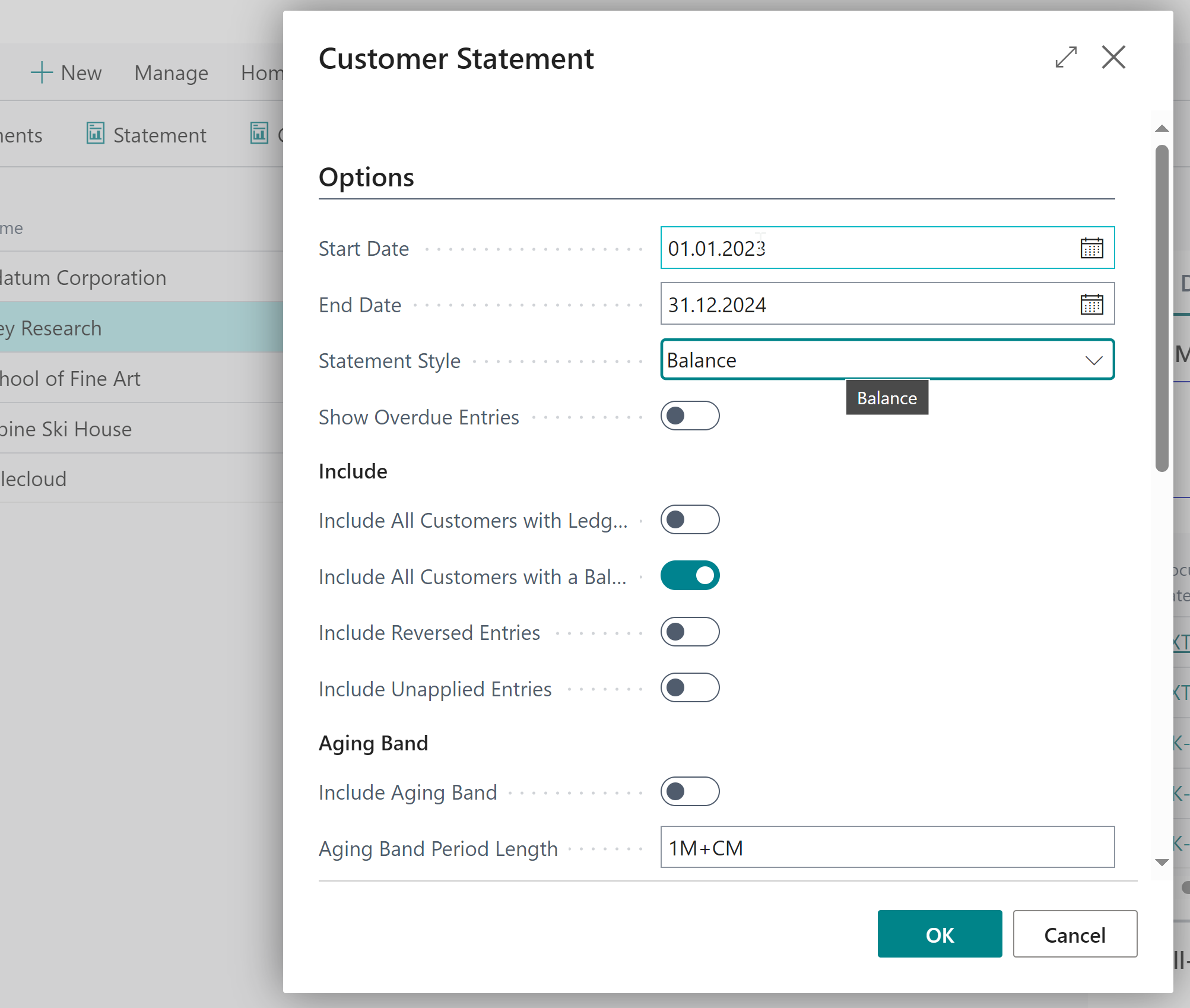

With this the settings from the report Request Page are saved to the archive:

Request Page

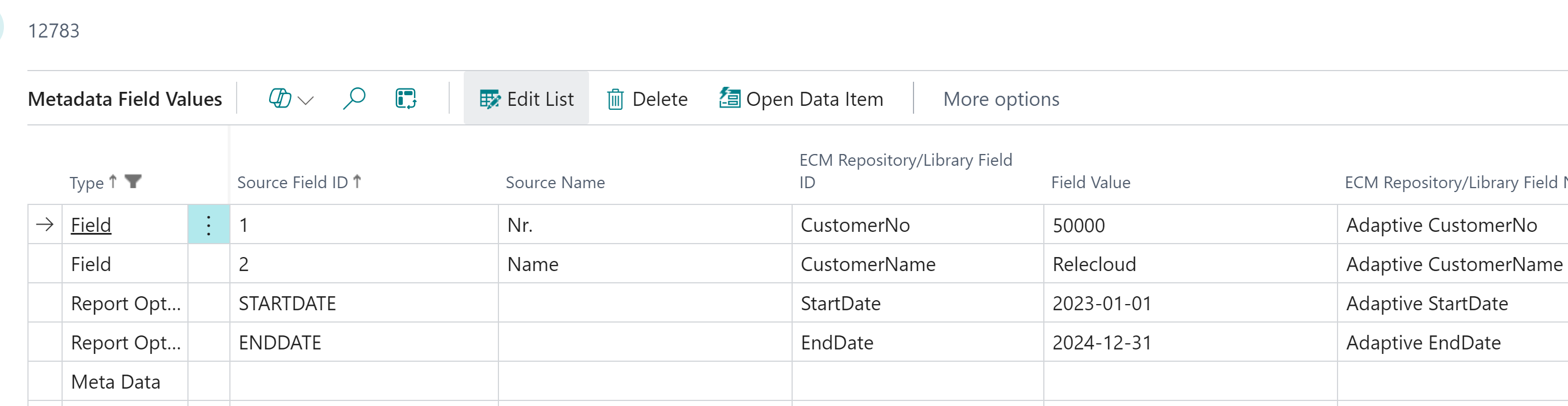

Metadata field values in the ECM Queue:

Metadata Field Values
